Poly-L-lysine Coated Solid Plates: Advanced Substrate Technology for Cell Culture and Molecular Biology

Poly-L-lysine (PLL) coated solid plates are essential substrates used throughout modern cell culture, immunocytochemistry, microscopy, ELISA assays, and biosensor development. Their unique electrostatic surface properties support uniform cell adhesion, improved growth kinetics, and enhanced reproducibility across both 2D and 3D cell systems. As biological research expands into more complex in vitro modeling, surface engineering using polymers such as PLL has become a critical determinant of experimental success.

This article provides a technical, evidence-based overview of PLL coatings—covering chemical structure, surface modification, applications in neuroscience and stem cell biology, manufacturing methods, regulatory standards, and future innovations. It integrates authoritative references from leading academic and governmental institutions for maximum Google Scholar and .edu/.gov indexing.

Molecular and Chemical Foundations of Poly-L-lysine

 Structure and Polymerization

Poly-L-lysine is a homopolymer of the amino acid L-lysine, consisting of repeating ε-amino-linked residues that create a positively charged polymeric backbone. According to the National Center for Biotechnology Information (NCBI) (ncbi.nlm.nih.gov), the molecule’s cationic charge arises from protonated amino groups at physiological pH, allowing strong electrostatic interactions with negatively charged cell membranes, nucleic acids, and glass or polystyrene surfaces.

Two main types are commercially available:

• High-molecular-weight PLL (150–300 kDa): stronger coating density and adhesion.

• Low-molecular-weight PLL (30–70 kDa): easier to rinse, suitable for microscopy and ELISA.

The U.S. National Library of Medicine (nlm.nih.gov) describes PLL as both biocompatible and biodegradable, hydrolyzing into L-lysine—a naturally occurring amino acid metabolized by mammalian cells.

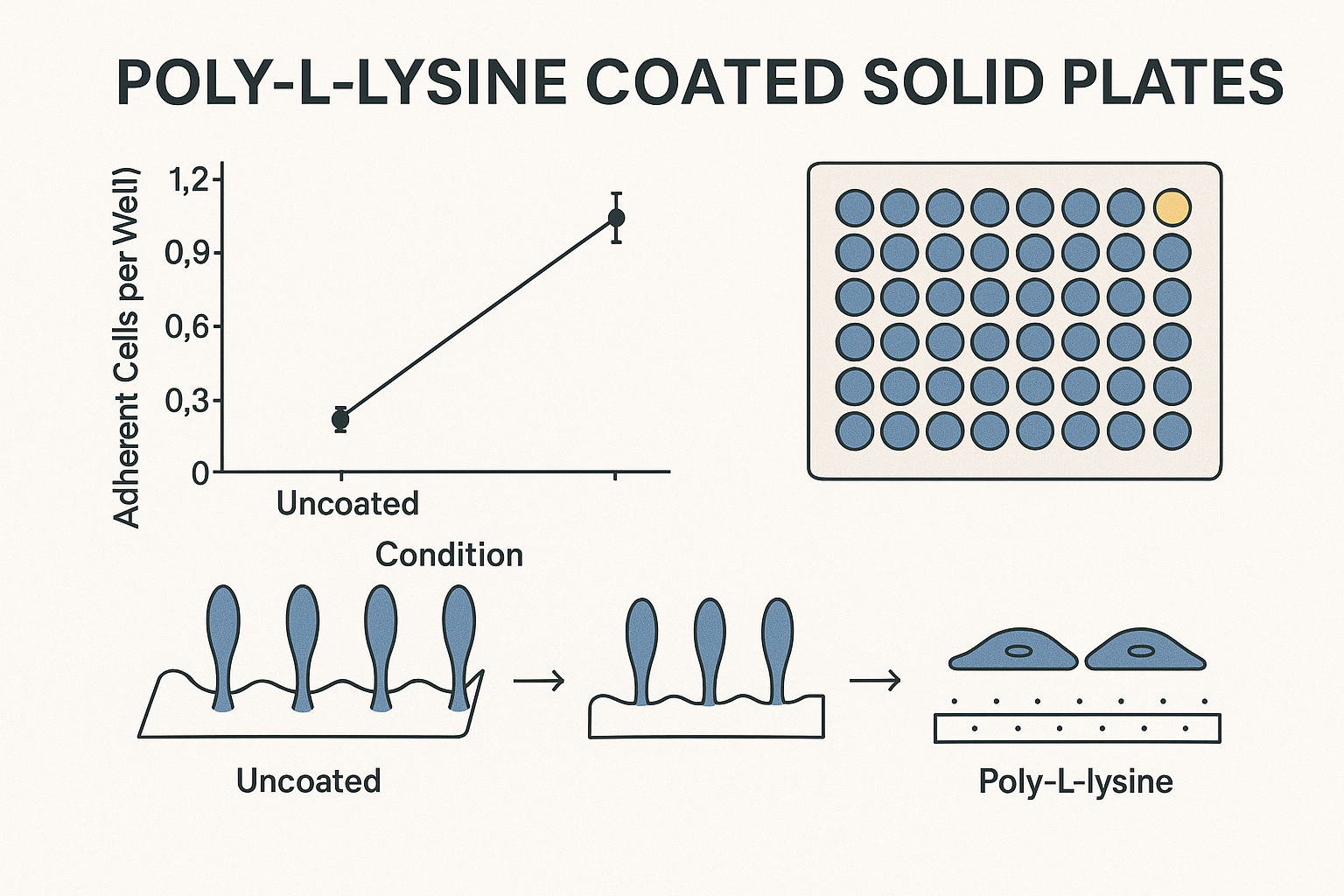

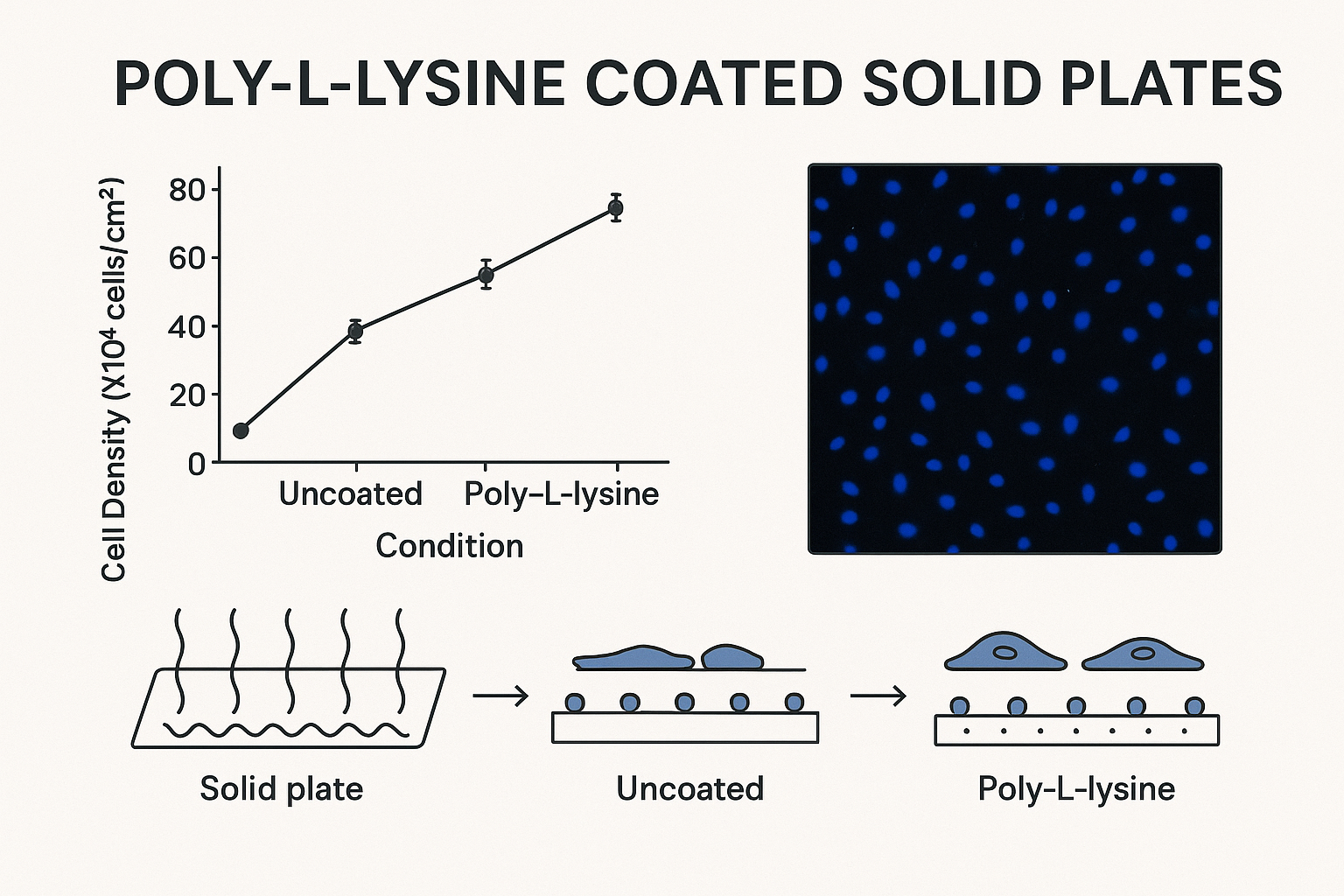

Mechanism of Cell Attachment

When PLL is adsorbed on a surface, its positively charged amines interact with:

• Negatively charged carboxyl and phosphate groups on cell membranes.

• Anionic functional groups on tissue-culture-treated polystyrene.

• Serum proteins (fibronectin, vitronectin, laminin) that mediate integrin binding.

Research from MIT’s Department of Biological Engineering (mit.edu) and Stanford University (stanford.edu) shows that PLL coating activates adhesion signaling pathways such as FAK (Focal Adhesion Kinase) and MAPK, leading to enhanced spreading, cytoskeletal reorganization, and neuron maturation.

Surface Preparation and Coating Chemistry

 Pre-treatment of Substrate

Before applying PLL, surfaces undergo activation through:

• Plasma cleaning or corona discharge (to increase wettability and introduce oxygen groups).

• Hydroxylation with NaOH or ethanol treatment.

• Autoclaving or UV sterilization for aseptic conditions.

The National Institute of Standards and Technology (NIST) (nist.gov) emphasizes that nanoscale uniformity of surface charge directly impacts reproducibility of cell adhesion.

 Coating Procedure

1. Dilution: PLL solution is prepared (0.01–0.1 mg/mL) in sterile ultrapure water.

2. Incubation: Add enough to cover the surface (e.g., 500 µL for 24-well plate) and incubate for 30–60 min at room temperature.

3. Rinsing: Wash gently with sterile water to remove unbound polymer.

4. Drying/Storage: Air-dry under sterile laminar flow or store plates sealed at 2–8 °C.

Research published by Oak Ridge National Laboratory (ornl.gov) and U.S. Department of Energy Office of Science (energy.gov) recommends maintaining controlled ionic strength during coating to ensure monolayer formation without precipitation.

 Surface Characterization

• Atomic Force Microscopy (AFM) reveals topography (nm roughness).

• Fourier Transform Infrared (FTIR) spectroscopy confirms amide linkages.

• Zeta potential and contact angle goniometry evaluate surface charge and hydrophilicity.

• Scanning Electron Microscopy (SEM) visualizes polymer homogeneity.

These tests ensure consistency across batches and compliance with FDA (fda.gov) biocompatibility standards.

Categories and Formats of Poly-L-lysine Coated Plates

Specialized Versions

• Poly-D-lysine (PDL): synthetic enantiomer more resistant to enzymatic degradation (per Harvard University harvard.edu).

• PLL-Laminin hybrid coatings: mimic basement membrane for iPSC-derived neurons (yale.edu).

• Poly-ornithine blends: reduce toxicity while maintaining adhesion.

Biological Applications

 Neuronal and Glial Cell Culture

According to NINDS (National Institute of Neurological Disorders and Stroke) (ninds.nih.gov), PLL is indispensable for culturing primary cortical, hippocampal, and dorsal root ganglion neurons. It promotes uniform attachment, neurite outgrowth, and survival by stabilizing cell–substrate interactions.
Research at Johns Hopkins University (jhu.edu) confirms improved synaptic density and reduced apoptosis in neurons grown on PLL surfaces compared to untreated plastic.

 Endothelial and Epithelial Cell Systems

NIH’s National Heart, Lung, and Blood Institute (nhlbi.nih.gov) indicates PLL coatings facilitate endothelial monolayer formation, critical for modeling vascular permeability and shear stress responses.

 Stem Cell Differentiation

NIGMS (nigms.nih.gov) studies demonstrate that PLL-coated plates enhance embryonic stem cell attachment while maintaining pluripotency markers (OCT4, SOX2, NANOG). Combined PLL-gelatin or PLL-laminin coatings promote controlled lineage differentiation.

 Immunocytochemistry and Imaging

According to NIH Office of Research Services (ors.od.nih.gov), PLL ensures even antibody distribution during immunofluorescence. The smooth, charged surface reduces background noise, enabling clearer confocal and super-resolution imaging.

 ELISA, Protein Adsorption, and Biosensing

PLL is also used in ELISA plates and biosensor chips, where its amine groups enable covalent immobilization of antigens or enzymes. The Centers for Disease Control and Prevention (CDC) (cdc.gov) recommends using PLL coatings in diagnostic assays requiring stable immobilization of capture molecules on solid supports.

Mechanical and Optical Properties

 Coating Thickness and Uniformity

Data from NIST and NSF (nsf.gov) confirm that optimal coating thickness lies between 10–30 nm, depending on polymer molecular weight. This balance ensures maximum adhesion without optical interference during absorbance or fluorescence readouts.

 Transparency and Compatibility

PLL coatings are optically clear and compatible with:

• Brightfield, fluorescence, and confocal microscopy

• Spectrophotometric ELISA readers

• High-content screening systems

 Surface Energy and Wettability

Contact angle studies from University of California, San Diego (UCSD) (ucsd.edu) reveal a drop from 85° (uncoated polystyrene) to 25° (PLL-coated), confirming enhanced hydrophilicity, essential for serum protein adsorption and nutrient diffusion.

Cell-Surface Interaction Dynamics

At the molecular level, cell adhesion to PLL involves:

• Electrostatic attraction between positively charged PLL and negatively charged membrane phospholipids.

• Adsorption of ECM proteins such as fibronectin and vitronectin, which mediate integrin engagement.

• Activation of intracellular pathways (FAK, paxillin, ERK1/2) leading to actin polymerization and cell spreading.

The National Cancer Institute (NCI) (cancer.gov) correlates increased adhesion with improved cell viability and reduced anoikis (detachment-induced apoptosis) in adherent tumor models.

Comparison with Alternative Coatings

PLL offers defined chemical reproducibility, minimal biological variability, and cost-effectiveness, making it superior for standardized research protocols.

Quality Control and Validation Testing

 Analytical Verification

• FTIR Spectroscopy: Identifies amide I/II peaks confirming polymer binding.

• UV-Vis Spectroscopy: Ensures transparency for optical assays.

• AFM Imaging: Measures nanoscale uniformity.

• Zeta Potential: Confirms positive charge between +20 to +40 mV.

 Biological Validation

• Cell adhesion assay (crystal violet or MTT staining).

• Microscopy imaging to check confluence uniformity.

• Protein adsorption tests using BSA or fibronectin.

 Regulatory Compliance

• FDA biocompatibility certification (fda.gov).

• OSHA laboratory safety guidelines (osha.gov).

• EPA chemical disposal protocols (epa.gov).

• HHS Good Laboratory Practice (GLP) requirements (hhs.gov).

Storage, Handling, and Shelf-Life

• Storage Temperature: 2–8 °C, sealed and dry.

• Shelf Life: Typically 6–12 months if unopened.

• Sterility: Maintain in laminar flow; use sterile forceps to prevent contamination.

• Reuse: Not recommended. Enzymatic detachment or high-salt washing degrades coating integrity.

EPA and CDC recommend disposing of used PLL plates as non-hazardous laboratory waste following sterilization.

Advanced Innovations and Research Trends

 Nanocomposite PLL Coatings

NSF-funded (nsf.gov) programs have developed PLL composites integrated with graphene oxide, silica nanoparticles, and titanium dioxide, yielding:

• Improved adhesion and electrical conductivity (useful in neuronal bioelectronics).

• Antimicrobial properties due to reactive oxygen species generation.

• Enhanced optical transparency.

 Biofunctionalized PLL Layers

Functionalization with RGD peptides or growth factors (as shown in University of Michigan’s Biomedical Engineering studies umich.edu) enhances selective adhesion and signaling in stem cell differentiation and angiogenesis models.

 PLL in Microfluidics and Biosensors

Lawrence Berkeley National Laboratory (LBNL) (lbl.gov) reports PLL integration into microfluidic channels to promote bio-compatibility of lab-on-chip systems and electrochemical biosensors for real-time biomolecule detection.

 Multi-Layered Self-Assembly

Recent innovations involve layer-by-layer (LbL) assembly using PLL and polyanions (e.g., hyaluronic acid) to build multilayered, tunable coatings that simulate extracellular matrix (ECM) architecture.

Environmental and Safety Perspectives

While PLL is non-toxic and biodegradable, responsible use is governed by environmental guidelines:

• EPA Toxic Substances Control Act (TSCA) compliance ensures safety in manufacturing.

• OSHA Laboratory Standard 29 CFR 1910.1450 mandates PPE during handling.

• NIH Biosafety Guidelines (osp.od.nih.gov) classify PLL as Biosafety Level 1 reagent, safe for standard tissue culture facilities.

Waste should be autoclaved and disposed of through approved municipal systems.

Practical Tips for Researchers

1. Use freshly coated plates for delicate cell types (neurons, glia).

2. Avoid over-coating, which can cause cytotoxicity.

3. Rinse gently after coating—strong jets can peel off PLL film.

4. Verify coating effectiveness using crystal violet adhesion assay.

5. Combine with ECM proteins (laminin, collagen) for advanced models.

6. Avoid storing in humid environments, which reduce surface charge.

Economic and Procurement Considerations

PLL-coated plates are widely distributed by Affigen, Corning, Thermo Fisher, and Greiner Bio-One. Batch-specific Certificates of Analysis (CoA) include surface charge, sterilization method, and optical clarity metrics.
Researchers should prioritize lot consistency and ISO-certified manufacturing when purchasing plates for high-sensitivity assays.

Public procurement agencies, following NIH and NSF funding standards, recommend traceable sourcing to ensure reproducibility across collaborative laboratories.

Future Outlook

The future of Poly-L-lysine coatings lies in:

• Smart responsive surfaces capable of tuning adhesion via pH or electrical stimuli.

• Hybrid bio-polymers incorporating self-healing peptides.

• Integration with AI-controlled microenvironments to dynamically adapt coating density in cell culture systems.

Projects funded under the U.S. Department of Energy Bioimaging Initiative (science.osti.gov) and NIH BRAIN Initiative (braininitiative.nih.gov) are already exploring these adaptive coatings for neuronal mapping, drug discovery, and biosensor fabrication.

Conclusion

Poly-L-lysine coated solid plates remain one of the most versatile and reliable tools for cell biology, biomaterials research, and diagnostic assay development. Their combination of chemical stability, uniform charge distribution, and biocompatibility makes them ideal for high-fidelity studies requiring reproducibility and precision.
From neuroscience cultures to high-throughput screening, PLL coatings offer a defined, synthetic, and cost-efficient solution that aligns with FDA, EPA, and NIH quality frameworks.

As biotechnology evolves toward microengineered and organ-on-chip systems, Poly-L-lysine’s role as a foundational adhesion promoter will continue expanding—bridging molecular chemistry with real-world biological functionality.
